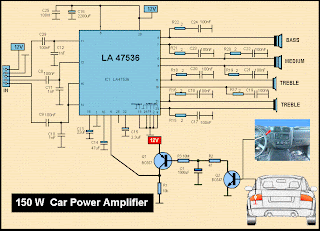

Here's schematic diagram of an active loudspeaker. TheLF353 is going to split audio signal into three bands. SANYO'S LA47536 is going to amplify these signals. In stereo mode, we shall have the action of eight high speakers who are going to create a very important sound pressure.

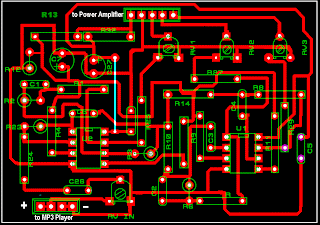

Three Band Active Tone Control These devices are low cost, high speed, dual JFET inputoperational amplifiers with an internally trimmed input offset voltage (BI-FET II technology). They require low supply current yet maintain a large gain band width product and fast slew rate. In addition, well matched high voltage JFETinput devices provide very low input bias and offset currents.
The LF353 is pin compatible with the standard LM1558 allowing designers to immediately upgrade e the overall performance of existing LM1558 and LM358 designs. These amplifiersmay be used in applications such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage, low input bias current,high input impedance, high slew rate and wide bandwidth. The devices also exhibit low noise and offset voltage drift.
When the amplifier is installed behind in the suitcase, we shall need a switch works stop. TheLA47536 possesses a function stand by in it pin4. This pine require a small tension superior to 2V in start up the amplifier. Transistor Q1 and Q2 makes the function of walking stop for distance. When the driver activates the left indicator, either light the back fires or press on the brake , lamps rear ignite driving Q2 who he even made to drive Q1 who applies a tension > 2V on it pin4. Overview

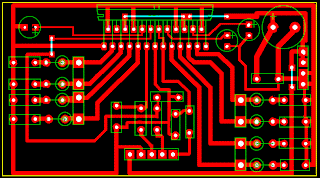

LA47536 Four-Channel 45 W BTL Car Audio Power Amplifier The LA47536 is a 4-channel BTL power amplifier IC developed for use in car audio systems. The output stage features
- A pure complimentary structure that uses V-PNP transistors on the high side and NPN transistors on the low side to provide high power and superb audio quality.
- The LA47536 includes almost all the functions required for car audio use, including a standby switch, a muting function, and each protection circuit. It also provides a self-diagnosis function (output offset detection).
